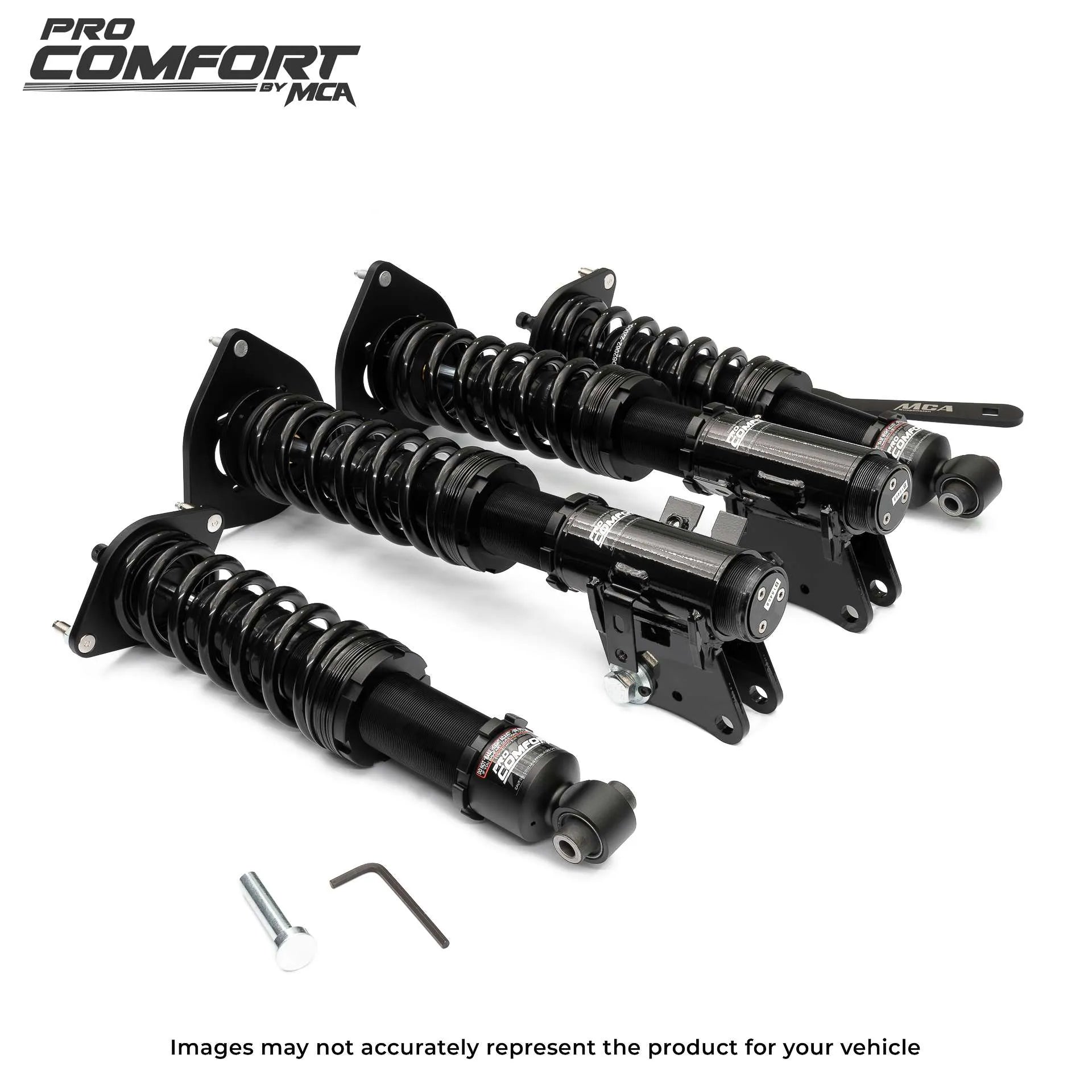

MCA Suspension Pro Comforts - Subaru BRZ/Toyota 86 (GT&GR)

Current Lead Times: Voston 1-2 weeks, Pro Series and Reds 2-3 weeks

Vehicle Specific Specs:

Overview

The MCA Pro Sports are designed to provide a high level of performance and handling with an acceptable level of comfort on the road. The minimal compromise is achieved thanks to Fusion 3.0, MCA’s latest valving, along with a more thorough and dedicated development program. Their setup has been derived from circuit racing testing for the Red Series but modified to suit a wider range of applications including street use. They feature a very wide range of height adjustment as well as hard/soft damper adjustment and camber adjustment where applicable.

The Pro Sports are internally and externally assembled here in our Brisbane Workshop. This means we have full control over the quality and accuracy of our products and our customers also get freshly assembled suspension.

Product Summary

• Assembled to order in Australia
• Comfort focused street driving
• Low-level spirited driving
• Height adjustment range of factory height down to 20mm tyre to fender gap (estimate)
• Uses a pre-determined valving and spring packaged from our MCA Reds product


Key Features

• Designed, Developed, Assembled & Fully Supported in Australia.
• 3 Year Transferrable, Industry Leading Warranty program.
• Can be Repaired, Reconditioned, Revalved and Resprung.
• MCA Proprietary Fusion Valving Technology V3.0
• Pre-selected valving and spring package.
• 12 Clicks of Hard/Soft Damper Adjuster (Bump & Rebound together).
• Camber Adjustment via top mount (check vehicle-specific specs for more info).
• Camber Washer Bottom Mounts(check vehicle-specific specs for more info).
• Damper Adjuster Extenders (where possible, see additional information).
• Wheel travel range adjustment via the bottom mount (pre-set by MCA).
• Height adjustment via spring seat position (base height adjustment is flawed).
• Suggested Height Range: ride height adjustment down to 10mm tyre to fender gap (can vary per vehicle).
• Reinforced double-gusseted lower mounts (where applicable, see additional information).
• Helper Springs to keep the main spring captive at all times.
• Latest Rugged Spec internal sealing designs and components.
• Superior Monotube design.

Warranty

Suspension

• 3 year warranty.
• Warranty covers motorsport use.
• Exchange program.
• Repaired in Australia.

Air Cups (if applicable)

• 2 year warranty.
